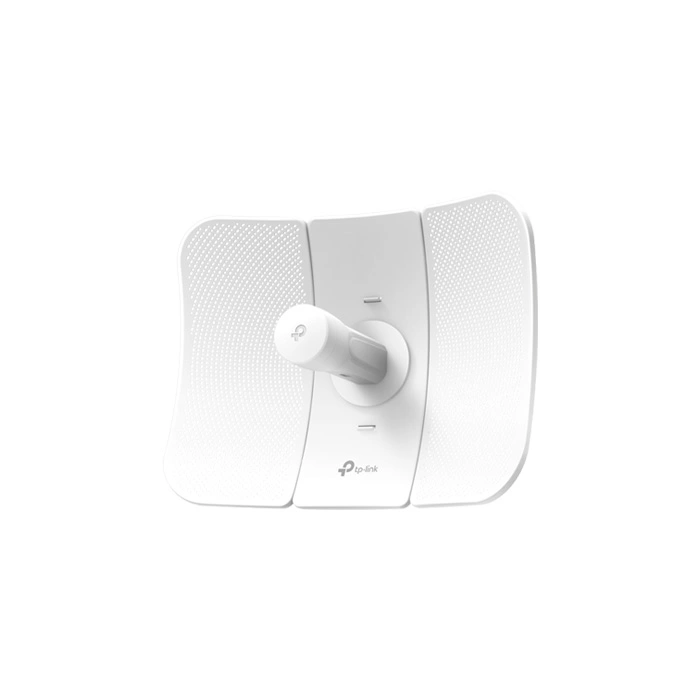

[CPE710] Omada by Tp-link 5GHz AC867 23dBi Outdoor CPE

Name: [CPE710] Omada by Tp-link 5GHz AC867 23dBi Outdoor CPE
SKU: TPL-CPE710
Availability: InStock

2,980 ฿ Excl. VAT 7%

5 GHz AC867 23 dBi Outdoor CPE

Port: 1 × Gigabit Shielded Ethernet Port

SPEED: 867 Mbps at 5 GHz

FEATURE: 23 dBi, 30+ km, IP65 Weatherproof, Passive PoE, Centralized Management, Spectrum Analyzer, AP/Client/AP Router/AP Client Router

Warranty 3 Years

1 in stock

ส่งฟรีกรุงเทพและ
ปริมณฑล

ส่งด่วน Sameday
ภายใน 24 ชั่วโมง

ขอใบเสนอราคา

ราคาถูกที่สุด

SKU: TPL-CPE710 Categories: 3y, OMADA, TP-LINK, TP-LINK NETWORK Tag: SS

Description


HARDWARE FEATURES
Processor	Qualcomm 750MHz CPU, MIPS 74Kc
Memory	128 MB DDR2 RAM, 16 MB Flash
Interface	1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
	1 Reset Button
Power Supply	Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
	Voltage range: 16-27V DC
Dimensions ( W x D x H )	366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain	23 dBi
Antenna Beamwidth	9° (Azimuth)/7° (Elevation)
Protection	15 KV ESD Protection
	6 KV Lightning Protection
Enclosure	Material: Outdoor PC stabilized plastic
	Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac
Wireless Speeds	Up to 867 Mbps (80 MHz, Dynamic)
	Up to 400 Mbps (40 MHz, Dynamic)
	Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency	5.15–5.85 GHz
Transmission Power	Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
Network Configuration	WAN: Static/ Dynamic/ PPPoE
	LAN: Static/ Dynamic/ DHCP
	Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
	Security: SPI Firewall/ Ping Forbidden/ DoS Protection
	Access Control
	Static Routing
	Bandwidth Control
	IP & MAC Binding
Wireless Configurations	Selectable Channel Width: 20/40/80MHz
	Auto Channel Selection
	Transmit Power Control
	Dynamic Frequency Selection(DFS)
	WDS Enable/ Disable
	Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
	SSID Broadcast Enable/ Disable
	Multi-SSID with VLAN Tagging(AP Mode only)
	Distance/ ACK Timeout Setting
	Wireless MAC Address Filter
	Wireless Advanced:
	Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
	Long Range PtP
Management Features	Discovery and Remote Management via Pharos Control application
	HTTP/ HTTPS Web-based management
	System log
	SNMP Agent(v2c)
	Ping Watch Dog
	Dynamic DDNS
	SSH Server
System Tools	Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
	Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
	Spectrum Analyzer
	Speed Test
	Ping
	Traceroute
	Antenna Alignment
System-level Optimizations	Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES
Dimensions(W x D x H)	85.8×43.9×29.7 mm
Interfaces	1 AC Jack with Earth Ground
	1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
	1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button	Remote Reset Button
Power Status LEDs	Green
Input	100-240VAC, 50/60Hz
Output	24VDC, 0.5A Max
	+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency	>84.29%
Certifications	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
Certification	CE, FCC, RoHS, IP65, IC
Package Content	Outdoor Wireless CPE
	24V 0.5A Passive PoE Adapter
	Pole Mounting Kits
	AC Power Cord
	Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
	Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment	Operating Temperature: -40℃~70℃ (-40℉~158℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~95% non-condensing
