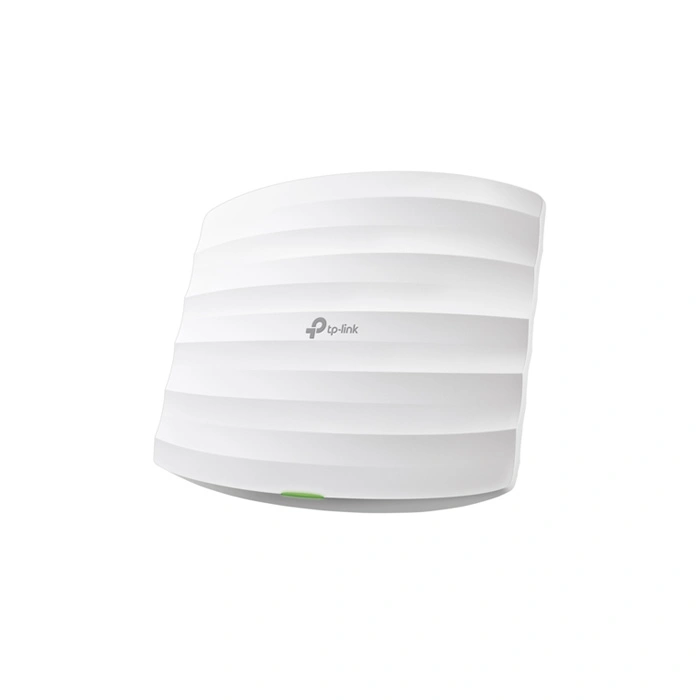

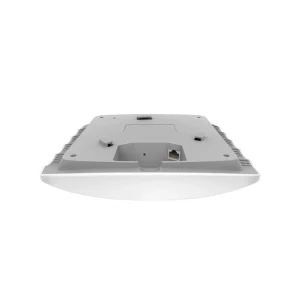

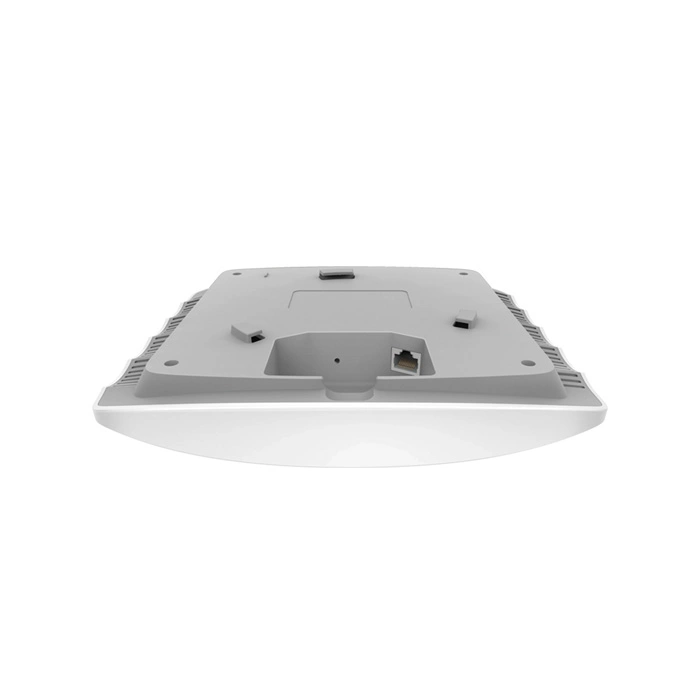

[EAP110] Omada by Tp-link 300 Mbps Ceiling Mount Wi-Fi Access Point

Name: [EAP110] Omada by Tp-link 300 Mbps Ceiling Mount Wi-Fi Access Point
SKU: TPL-EAP110
Availability: InStock

925 ฿ Excl. VAT 7%

300 Mbps Ceiling Mount Wi-Fi Access Point

PORT: 1× 10/100 Mbps RJ45 Port

SPEED: 300 Mbps at 2.4 GHz

FEATURE: Passive PoE, 2× Internal Antennas, Load Balance, Centralized Management by Omada SDN Controller, Omada App

Warranty Limited Lifetime

27 in stock

ส่งฟรีกรุงเทพและ
ปริมณฑล

ส่งด่วน Sameday
ภายใน 24 ชั่วโมง

ขอใบเสนอราคา

ราคาถูกที่สุด

SKU: TPL-EAP110 Categories: OMADA, TP-LINK, TP-LINK NETWORK Tag: SS

Description


HARDWARE FEATURES
Interface	1× Fast Ethernet (RJ-45) Port (Support Passive PoE)
Button	Reset
Power Supply	24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption	2.8 W
Dimensions ( W x D x H )	7.5×6.7×1.2 in (189.5×170.5×29.7mm)
Antenna	Internal 2× 4 dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage	60㎡(650ft²)§
Concurrent Clients	100+**
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4–2.4835 GHz
Signal Rate	• 11n: Up to 300 Mbps (dynamic)
	• 11g: Up to 54 Mbps (dynamic)
	• 11b: Up to 11 Mbps (dynamic)
Reception Sensitivity	• 300M: -71 dBm@10% PER
	• 150M: -75 dBm@10% PER
	• 54M: -78 dBm@10% PER
	• 11M: -93 dBm@8% PER
	• 6M: -92 dBm@10% PER
	• 1M: -96 dBm@8% PER
Wireless Functions	• Multiple SSIDs （Up to 8 SSIDs）
	• Enable/Disable Wireless Radio
	• Automatic Channel Assignment
	• Transmit Power Control （Adjust Transmit Power on dBm）
	• QoS(WMM)
	• Rate Limit
	• Reboot Schedule
	• Wireless Schedule
	• Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication
	• Access Control
	• Wireless MAC Address Filtering
	• Wireless Isolation Between Clients
	• SSID to VLAN Mapping
	• Rogue AP Detection
	• 802.1X Support
	• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	• CE:
	≤19 dBm (EIRP)
	• FCC:
	≤21 dBm

Management Features
Omada App	Yes
Centralized Management	• Omada Hardware Controller
	• Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Content	• 300Mbps Wireless N Ceiling Mount Access Point EAP110
	• Passive PoE Adapter
	• Power Cord
	• Mounting Kits
	• Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉)
	• Storage Temperature: -40–70 ℃ (-40–158 ℉)
	• Operating Humidity: 10–90% RH non-condensing
	• Storage Humidity: 5–90% RH non-condensing

Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*
PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.
Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.*
Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
