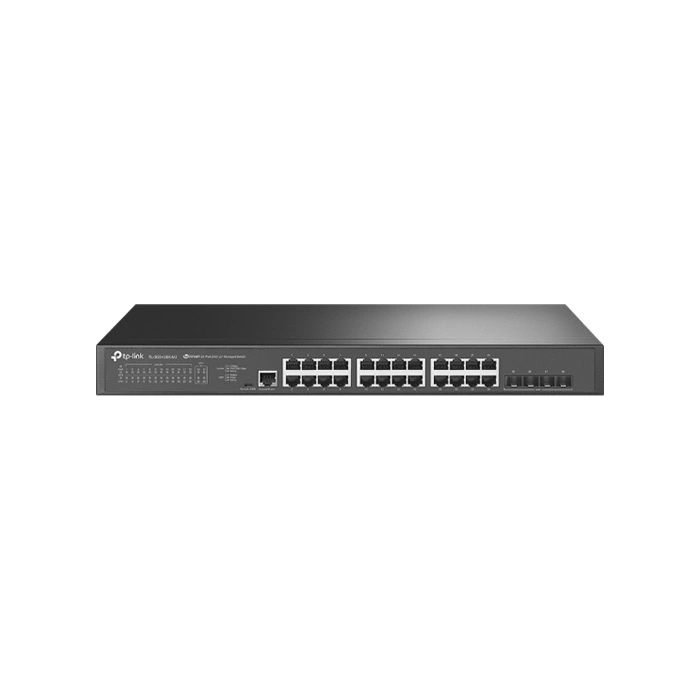

[SG3428X-M2] Tp-Link JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots

Name: [SG3428X-M2] Tp-Link JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots
SKU: SG3428X-M2
Price: 14000 THB
Availability: InStock

14,000 ฿ Excl. VAT 7%

2 in stock

ส่งฟรีกรุงเทพและ
ปริมณฑล

ส่งด่วน Sameday
ภายใน 24 ชั่วโมง

ขอใบเสนอราคา

ราคาถูกที่สุด

Brand Certifications

SKU: SG3428X-M2 Categories: TP-LINK, TP-LINK NETWORK Tag: SYN

Description


HARDWARE FEATURES
Interface	• 24× 2.5 Gbps RJ45 Ports
	• 4× 10G SFP+ Slots
	• 1× RJ45 Console Port
	• 1× Micro-USB Console Port
Fan Quantity	1
Power Supply	100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	45.1 W (110V/60Hz)
Max Heat Dissipation	154.38 BTU/h (110 V/60 Hz)

PERFORMANCE
Switching Capacity	200 Gbps
Packet Forwarding Rate	148.80 Mpps
MAC Address Table	32 K
Packet Buffer Memory	16 Mbit
Jumbo Frame	9 KB

SOFTWARE FEATURES
Quality of Service	• 8 priority queues
	• 802.1p CoS/DSCP priority
	• Queue scheduling
	– SP (Strict Priority)
	– WRR (Weighted Round Robin)
	– SP+WRR
	• Bandwidth Control
	– Port/Flow based Rating Limiting
	• Smoother Performance
	• Action for Flows
	– Mirror (to supported interface)
	– Redirect (to supported interface)
	– Rate Limit
	– QoS Remark
L3 Features	• 32 IPv4/IPv6 Interfaces
	• Static Routing
	– 48 static routes
	• Static ARP
	– 128 Static Entries
	• Proxy ARP
	• Gratuitous ARP
	• DHCP Server
	• DHCP Relay
	– DHCP Interface Relay
	– DHCP VLAN Relay
	• DHCP L2 Relay
L2 and L2+ Features	• Link Aggregation
	– static link aggregation
	– 802.3ad LACP
	– Up to 8 aggregation groups, containing 8 ports per group
	• Spanning Tree Protocol
	– 802.1d STP
	– 802.1w RSTP
	– 802.1s MSTP
	– STP Security: TC Protect, BPDU Filter, Root Protect
	• Loopback Detection
	– Port based
	– VLAN based
	• Flow Control
	– 802.3x Flow Control
	– HOL Blocking Prevention
	• Mirroring
	– Port Mirroring
	– CPU Mirroring
	– One-to-One
	– Many-to-One
	– Tx/Rx/Both
L2 Multicast	• IGMP Snooping
	– IGMP v1/v2/v3 Snooping
	– Fast Leave
	– IGMP Snooping Querier
	– IGMP Authentication
	• IGMP Authentication
	• MLD Snooping
	– MLD v1/v2 Snooping
	– Fast Leave
	– MLD Snooping Querier
	– Static Group Config
	– Limited IP Multicast
	• MVR
	• Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	• Automatic Device Discovery
	• Batch Configuration
	• Batch Firmware Upgrading
	• Intelligent Network Monitoring
	• Abnormal Event Warnings
	• Unified Configuration
	• Reboot Schedule
VLAN	• VLAN Group
	– Max 4K VLAN Groups
	• 802.1Q Tagged VLAN
	• MAC VLAN: 256 Entries
	• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
	• GVRP
	• VLAN VPN (QinQ)
	– Port-Based QinQ
	– Selective QinQ
	• Voice VLAN
Access Control List	• Time-based ACL
	• MAC ACL
	– Source MAC
	– Destination MAC
	– VLAN ID
	– User Priority
	– Ether Type
	• IP ACL
	-Source IP
	– Destination IP
	– Fragment
	– IP Protocol
	– TCP Flag
	– TCP/UDP Port
	– DSCP/IP TOS
	– User Priority
	• Combined ACL
	• Packet Content ACL
	• IPv6 ACL
	• Policy
	– Mirroring
	– Redirect
	– Rate Limit
	– QoS Remark
	• ACL apply to Port/VLAN
Security	• IP-MAC-Port Binding
	– 512 Entries
	– DHCP Snooping
	– ARP Inspection
	– IPv4 Source Guard: 100 Entries
	• IPv6-MAC-Port Binding
	– 512 Entries
	– DHCPv6 Snooping
	– ND Detection
	– IPv6 Source Guard: 100 Entries
	• DoS Defend
	• Static/Dynamic Port Security
	– Up to 64 MAC addresses per port
	• Broadcast/Multicast/Unicast Storm Control
	– kbps/ratio control mode
	• 802.1X
	– Port base authentication
	– Mac base authentication
	– VLAN Assignment
	– MAB
	– Guest VLAN
	– Support Radius authentication andaccountability
	• AAA (including TACACS+)
	• Port Isolation
	• Secure web management through HTTPS with SSLv3/TLS 1.2
	• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
	• IP/Port/MAC based access control
IPv6	• IPv6 Dual IPv4/IPv6
	• Multicast Listener Discovery (MLD) Snooping
	• IPv6 ACL
	• IPv6 Interface
	• Static IPv6 Routing
	• IPv6 neighbor discovery (ND)
	• Path maximum transmission unit (MTU) discovery
	• Internet Control Message Protocol (ICMP) version 6
	• TCPv6/UDPv6
	• IPv6 applications
	– DHCPv6 Client
	– Ping6
	– Tracert6
	– Telnet (v6)
	– IPv6 SNMP
	– IPv6 SSH
	– IPv6 SSL
	– Http/Https
	– IPv6 TFTP
MIBs	• MIB II (RFC1213)
	• Interface MIB (RFC2233)
	• Ethernet Interface MIB (RFC1643)
	• Bridge MIB (RFC1493)
	• P/Q-Bridge MIB (RFC2674)
	• RMON MIB (RFC2819)
	• RMON2 MIB (RFC2021)
	• Radius Accounting Client MIB (RFC2620)
	• Radius Authentication Client MIB (RFC2618)
	• Remote Ping, Traceroute MIB (RFC2925)
	• Support TP-Link private MIB

MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller
	• Omada Hardware Controller (OC300)
	• Omada Hardware Controller (OC200)
	• Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI
	• Command Line Interface (CLI) through the console port, telnet
	• SNMP v1/v2c/v3
	– Trap/Inform
	– RMON (1,2,3,9 groups)
	• SDM Template
	• DHCP/BOOTP Client
	• 802.1ab LLDP/LLDP-MED
	• DHCP AutoInstall
	• Dual Image, Dual Configuration
	• CPU Monitoring
	• Cable Diagnostics
	• EEE
	• Password Recovery
	• SNTP
	• System Log

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• TL-SG3428X-M2 Switch
	• Power Cord
	• Quick Installation Guide
	• Rackmount Kit
	• Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉);
	• Storage Temperature: -40–70 ℃ (-40–158 ℉)
	• Operating Humidity: 10–90% RH non-condensing
	• Storage Humidity: 5–90% RH non-condensing
