[B3405CCA-LY1875X] Notebook Asus ExpertCenter U7-255H/16GB/512GB/14″/W11P/3YOSS
36,900 ฿ Excl. VAT 7%
Intel Core Ultra 7 Processor 255H 2.0 GHz/16GB DDR5 SO-DIMM/DDR5 16GB/512GB M.2 2280 NVMe PCIe 4.0 SSD/14.0-inch/Windows 11 Pro/Backpack+Wireless optical mouse(Included in the Box)/3YOSS
ส่งด่วน Sameday
ภายใน 24 ชั่วโมง
ส่งฟรีกรุงเทพและ
ปริมณฑล
| Part No | 90NX08L1-M026H0 |
| Sales Model Name | B3405CCA-LY1875X |
| Operating System | Windows 11 Pro |
| Office | 1-month trial for new Microsoft 365 customers. Credit card required. |
| LCD cover-material | Aluminum |
| LCD cover-color | Gentle Grey |
| Top case-material | Plastic |
| Top case-color | Gentle Grey |
| Bottom case-material | Plastic |
| Bottom case-color | Gentle Grey |
| Military grade | US MIL-STD 810H military-grade standard |
| Panel Size | 14.0-inch |
| Backlit | LED Backlit |
| Brightness | 300nits |
| Resolution | WUXGA (1920 x 1200) 16:10 |
| Glare | Anti-glare display |
| Color gamut | NTSC: 45% |
| View angle(H/V) | 170/170 |
| Response time(Typ/Max) (ms) | 20/25 |
| Refresh rate | 60Hz |
| Contrast (Typ) | 800:1 |
| Touch Panel | Non-touch screen |
| Screen-to-body ratio | 84 % |
| IPS-level | Wide view |
| Processor | Intel® Core™ Ultra 7 Processor 255H 2.0 GHz (24MB Cache, up to 5.1 GHz, 16 cores, 16 Threads); Intel® AI Boost NPU up to 13 TOPS |
| Neural processor | Intel® AI Boost NPU |
| Chipset | N/A |
| Discrete/Share | Share |
| Integrated GPU | Intel® Graphics |
| VRAM | N/A |
| How to upgrade memory | Upgradable; Need to remove bottom/top case |
| Expansion Slot(includes used) | 2x DDR5 SO-DIMM slots 1x M.2 2230 PCIe 4.0×4 1x M.2 2280 PCIe 4.0×4 While selecting the LTE/5G specification, the 2230 SSD can’t be installed additionally due to design limitation. |
| DIMM Memory | 16GB DDR5 SO-DIMM |
| Total System Memory | DDR5 16GB |
| Storage | 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD, TCG Opal 2.0 self-encrypting drive (SED) SSD Housing for storage expansion |
| Front-facing camera | 1080p FHD camera with IR function to support Windows Hello With privacy shutter |
| Wireless | Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card |
| NumberPad | N/A |
| FingerPrint | FingerPrint |

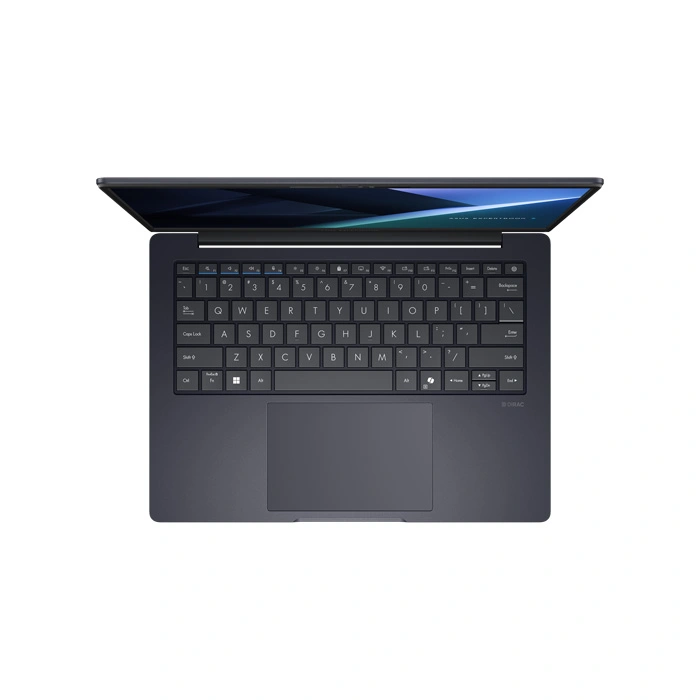

| Keyboard type | Backlit Chiclet Keyboard |
| I/O ports | 2x USB 3.2 Gen 1 Type-A 2x USB 3.2 Gen 2 Type-C support display / power delivery 1x HDMI 2.1 TMDS 1x 3.5mm Combo Audio Jack 1x RJ45 Gigabit Ethernet Micro SD card reader |
| Audio | Audio by Dirac Smart Amp Technology Built-in speaker Built-in array microphone |
| Battery | 50WHrs, 3S1P, 3-cell Li-ion |
| AC Adapter | TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal |
| Required charging power | Min: 55W Max: 65W *The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. |
| Dimension (WxHxD) | 31.51 x 22.68 x 1.89 ~ 1.90 cm (12.41″ x 8.93″ x 0.74″ ~ 0.75″) |
| Weight (with Battery) | 1.49 kg (3.28 lbs) |
| Weight (w/o Battery) | 1.30 kg (2.87 lbs) |
| Security | Fingerprint sensor integrated with Power Key Kensington Nano Security Slot™(6x 2.5mm) BIOS Booting User Password Protection BIOS Integrity Measurement Support BIOS Self Recovery BIOS setup user password CSME BIOS Redundancy Assistance Enhanced Password Strength HDD User Password Protection and Security Intel CSME Firmware Resilience Intel® BIOS Guard Intel® Boot Guard Microsoft Secured-core PC Microsoft Security Level 2 Support Absolute Persistence 2.0 (Computrace) Trusted Platform Module (TPM) 2.0 N/A |
| Antivirus | McAfee® 1 year |
| MyASUS feature | System diagnosis Battery health charging Fan Profile Splendid Tru2Life Function key lock WiFi SmartConnect AppDeals Link to MyASUS |
| Built-in Apps | MyASUS AI ExpertMeet (AI features need devices with 12GB RAM or more) |
| Disclaimer for Built-in Apps | Built-in Apps vary from OS SKU. *MyASUS/McAfee don’t support in Pure OS/without OS/G sku/Win SE/Windows on ARM/Linux OS (ex. Endless, Kylin, Ubuntu) |
| Included in the Box | Backpack Wireless optical mouse |
| Reparability Index (for Belgium) | 9.5 |
| Reparability Index (for France) | 9.7 |
| Ecolabels & Compliances | EPEAT Gold with Climate+ Energy star 8.0 FSC Recycled REACH RoHS TCO Certified |
| Base Warranty | 1Y OnSite Service; Accidental Damage Protection + 2Y OnSite Service |
| Recommended Warranty Package Part number//Extension and/or upgrade service from base warranty | *If you would like to know the details, please contact your sales teams. |
| Battery warranty | Commercial NB B series Battery warranty follow system warranty, 4Y-5Y by WEP option. |
