| Part No | 90NX08N1-M005X0 |
| Sales Model Name | B3605CCA-MB0160X |
| Operating System | Windows 11 Pro |
| Office | 1-month trial for new Microsoft 365 customers. Credit card required. |
| LCD cover-material | Aluminum |
| LCD cover-color | Gentle Grey |
| Top case-material | Plastic |
| Top case-color | Gentle Grey |
| Bottom case-material | Plastic |
| Bottom case-color | Gentle Grey |
| Military grade | US MIL-STD 810H military-grade standard |
| Panel Size | 16.0-inch |
| Backlit | LED Backlit |
| Brightness | 300nits |
| Resolution | WUXGA (1920 x 1200) 16:10 |
| Glare | Anti-glare display |
| Color gamut | NTSC: 45% |
| View angle(H/V) | 178/178 |
| Response time(Typ/Max) (ms) | 14/16 |
| Refresh rate | 60Hz |
| Contrast (Typ) | 1000:1 |
| Touch Panel | Non-touch screen |
| Screen-to-body ratio | 85 % |
| IPS-level | Wide view |
| Processor | Intel® Core™ Ultra 5 Processor 225H 1.7 GHz (18MB Cache, up to 4.9 GHz, 14 cores, 14 Threads); Intel® AI Boost NPU up to 13 TOPS |
| Neural processor | Intel® AI Boost NPU |
| Chipset | N/A |
| Discrete/Share | Share |
| Integrated GPU | Intel® Graphics |
| VRAM | N/A |
| How to upgrade memory | Upgradable; Need to remove bottom/top case |
| Expansion Slot(includes used) | 2x DDR5 SO-DIMM slots |
| 1x M.2 2230 PCIe 4.0×4 | |
| 1x M.2 2280 PCIe 4.0×4 | |
| While selecting the LTE/5G specification, the 2230 SSD can’t be installed additionally due to design limitation. | |
| DIMM Memory | 16GB DDR5 SO-DIMM |
| Total System Memory | DDR5 16GB |
| Storage | 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD |
| SSD Housing for storage expansion | |
| Front-facing camera | 1080p FHD camera with IR function to support Windows Hello |
| With privacy shutter | |
| Wireless | Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card |
| NumberPad | N/A |
| FingerPrint | FingerPrint |
| Keyboard type | Backlit Chiclet Keyboard with Num-key |
| I/O ports | 2x USB 3.2 Gen 1 Type-A |
| 2x USB 3.2 Gen 2 Type-C support display / power delivery | |
| 1x HDMI 2.1 TMDS | |
| 1x 3.5mm Combo Audio Jack | |
| 1x RJ45 Gigabit Ethernet | |
| Micro SD card reader | |
| Audio | Audio by Dirac |
| Smart Amp Technology | |
| Built-in speaker | |
| Built-in array microphone | |
| Battery | 50WHrs, 3S1P, 3-cell Li-ion |
| AC Adapter | TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal |
| Required charging power | Min: 55W |
| Max: 65W | |
| *The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. | |
| Dimension (WxHxD) | 35.84 x 25.39 x 1.89 ~ 1.90 cm (14.11″ x 10.00″ x 0.74″ ~ 0.75″) |
| Weight (with Battery) | 1.79 kg (3.95 lbs) |
| Weight (w/o Battery) | 1.60 kg (3.53 lbs) |
| Security | Fingerprint sensor integrated with Power Key |
| Kensington Nano Security Slot™(6x 2.5mm) | |
| BIOS Booting User Password Protection | |
| BIOS Integrity Measurement Support | |
| BIOS Self Recovery | |
| BIOS setup user password | |
| CSME BIOS Redundancy Assistance | |
| Enhanced Password Strength | |
| HDD User Password Protection and Security | |
| Intel CSME Firmware Resilience | |
| Intel® BIOS Guard | |
| Intel® Boot Guard | |
| Microsoft Secured-core PC | |
| Microsoft Security Level 2 | |
| Support Absolute Persistence 2.0 (Computrace) | |
| Trusted Platform Module (TPM) 2.0 | |
| N/A | |
| Antivirus | McAfee® 1 year |
| MyASUS feature | System diagnosis |
| Battery health charging | |
| Fan Profile | |
| Splendid | |
| Tru2Life | |
| Function key lock | |
| WiFi SmartConnect | |
| AppDeals | |
| Link to MyASUS | |
| Built-in Apps | MyASUS |
| AI ExpertMeet (AI features need devices with 12GB RAM or more) | |
| Disclaimer for Built-in Apps | Built-in Apps vary from OS SKU. |
| *MyASUS/McAfee don’t support in Pure OS/without OS/G sku/Win SE/Windows on ARM/Linux OS (ex. Endless, Kylin, Ubuntu) | |
| Included in the Box | Backpack |
| Wireless optical mouse | |
| Reparability Index (for France) | 9.7 |
| Ecolabels & Compliances | EPEAT Gold with Climate+ |
| Energy star 8.0 | |
| FSC Recycled | |
| REACH | |
| RoHS | |
| TCO Certified | |
| Base Warranty | 1Y OnSite Service; Accidental Damage Protection + 2Y OnSite Service |
| Recommended Warranty Package Part number//Extension and/or upgrade service from base warranty | //1Y Extension; 4Y Accidental Damage Protection* *upgrade |
| //2Y Accidental Damage Protection* | |
| ACX11-00490HNX//1Y Extension | |
| ACX11-00491HNX//2Y Extension | |
| ACX12-004011NX//3Y Accidental Damage Protection* *upgrade | |
| ACX13-007013NX//1Y Extension; 4Y OnSite Service(Next Business Day)*upgrade | |
| ACX13-007023NX//2Y Extension; 5Y OnSite Service(Next Business Day)*upgrade | |
| ACX14-013920NX//1Y Extension; 4Y Battery Service Package*upgrade | |
| *If you would like to know the details, please contact your sales teams. | |
| Battery warranty | Commercial NB B series Battery warranty follow system warranty, 4Y-5Y by WEP option. |
| Sustainable Material_Top cover(A part) | 30% PCR recycled plastic(cover or inner frame) |
| 30% PIR recycled aluminum | |
| Sustainable Material_Keyboard frame (C part) | 30% PCR recycled plastic(cover or inner frame) |
| Sustainable Material_Bottom cover (D part) | 30% PCR recycled plastic(cover or inner frame) |
| Sustainable Material_Battery | 30% PCR recycled plastic |
| Sustainable Material_Keyboard | 50% PCR recycled plastic cap |
| Sustainable Material_Speaker | 45% PCR + 5% OBP PCR recycled plastic enclosure |
| Sustainable Material_Total PCR recycled plastic | 30% |

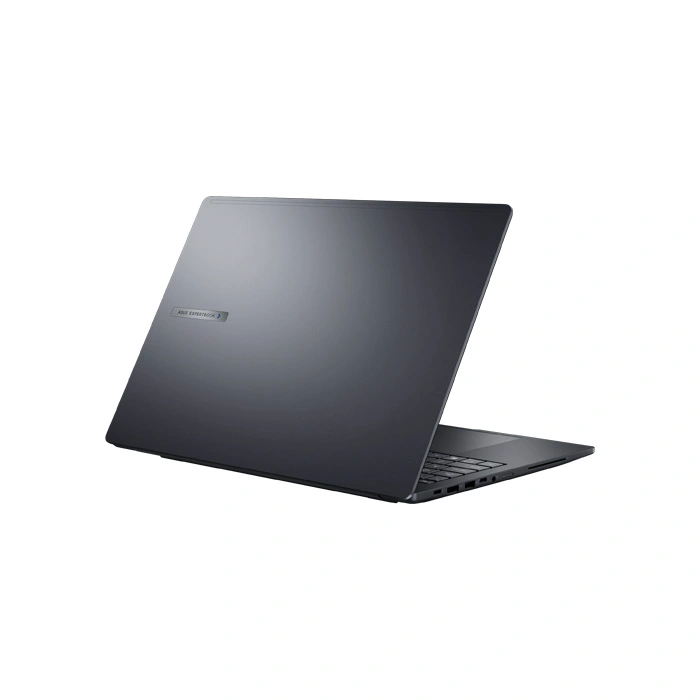

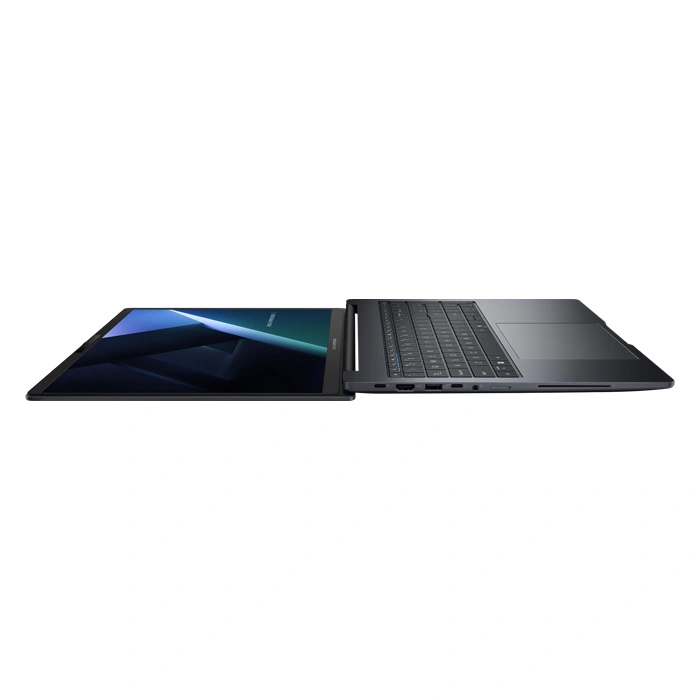

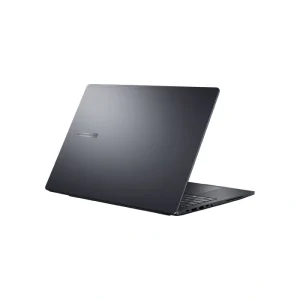

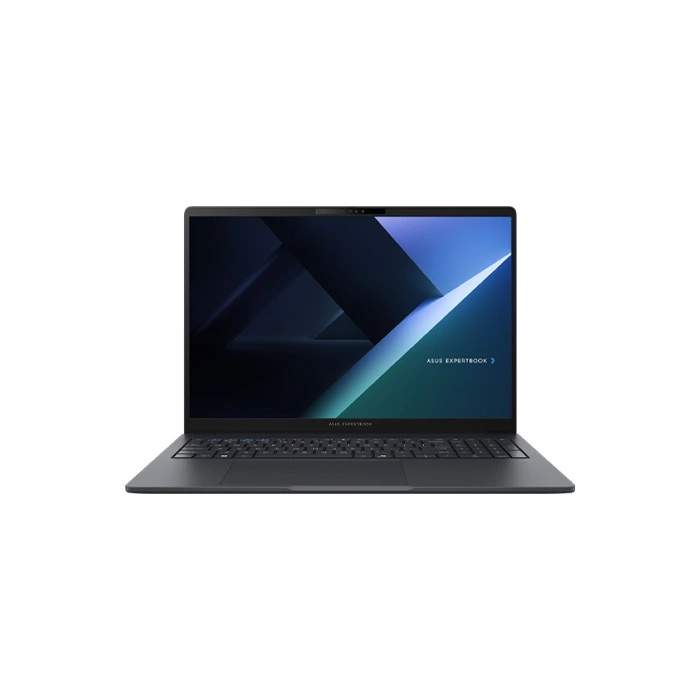

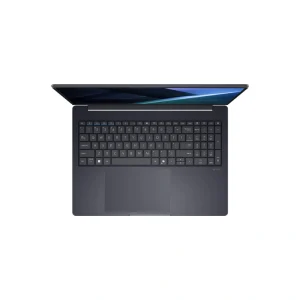

[B3605CCA-MB0160X] Notebook Asus ExpertBook 16.0″/Ultra5-225H(series 2)/16G/512G/W11P/3YOSS(1YADP)
31,500 ฿ Excl. VAT 7%
16.0inch NON-TOUCH,300NITS/Ultra5-225H(series 2)/DDR5 16G/512G/FHD+IR/Fingerprint/Wifi6E/Backlit KB/Backpack+wireless mouse/W11P/3YOSS(1YADP)
out of stock
