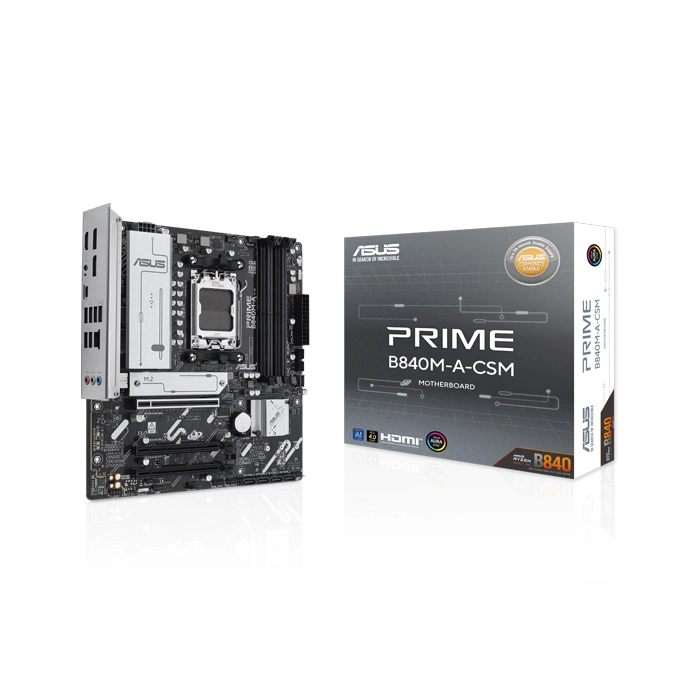

[B840M-A-CSM] MAINBOARD ASUS PRIME (90MB1J10) เมนบอร์ด

Name: [B840M-A-CSM] MAINBOARD ASUS PRIME (90MB1J10) เมนบอร์ด
SKU: 0330-002-0118
Availability: InStock

6,600 ฿ Excl. VAT 7%

เมนบอร์ดซีรีส์ ASUS Prime ได้รับการออกแบบมาอย่างเชี่ยวชาญ เพื่อดึงศักยภาพสูงสุดของ โปรเซสเซอร์ AMD Ryzen™ 9000 series ออกมาได้อย่างเต็มที่ โดยเมนบอร์ด PRIME B840M-A-CSM มอบตัวเลือกในการปรับแต่งประสิทธิภาพที่หลากหลายให้กับผู้ใช้งานและนักประกอบพีซี DIY ผ่านซอฟต์แวร์และเฟิร์มแวร์ที่ใช้งานง่าย

นอกจากนี้ ยังออกแบบมาเพื่อรองรับการใช้งานในยุค AI PC ขั้นสูง ด้วยพลังประมวลผลและการเชื่อมต่อที่ตอบโจทย์แอปพลิเคชันด้าน AI ที่มีความต้องการสูง

ประกัน 3 ปี

6 in stock

ส่งฟรีกรุงเทพและ
ปริมณฑล

ส่งด่วน Sameday
ภายใน 24 ชั่วโมง

ขอใบเสนอราคา

ราคาถูกที่สุด

SKU: 0330-002-0118 Categories: 3y, ASUS, ASUS MAINBOARD, MAINBOARD Tag: WTG

Description


Model	PRIME B840M-A-CSM
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
	* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B840 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5
	Supports up to 7600+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO™)
	ASUS Enhanced Memory Profile (AEMP)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	2 x DisplayPort**
	1 x HDMI™ port***
	* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
	1 x PCIe 4.0 x16 slot (supports x16 mode)
	AMD Ryzen™ 8000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
	AMD B840 Chipset
	2 x PCIe 3.0 x16 slots (support x1 mode)
	* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
	** Specifications vary by CPU types.
	– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
	AMD Ryzen™ 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	AMD Ryzen™ 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
	AMD B840 Chipset
	M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode)
	4 x SATA 6Gb/s ports
	* Specifications vary by CPU types.
	AMD RAIDXpert2 Technology
	Ryzen™ 9000 Series Processors: RAID 0/1/5/10
	Ryzen™ 8000 Series Processors: RAID 0/1
	Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Realtek 2.5Gb Ethernet
	ASUS LANGuard
USB	Rear USB (Total 7 ports)
	2 x USB 10Gbps ports (2 x Type-A)
	1 x USB 5Gbps port (1 x USB Type-C®)
	4 x USB 2.0 ports (4 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 5Gbps connector (supports USB Type-C®)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB Type-C® power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– Supports up to 24-Bit/192 kHz playback
	Audio Features
	– Audio Shielding
	– Premium audio capacitors
	– Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A)
	1 x USB 5Gbps port (1 x USB Type-C®)
	4 x USB 2.0 ports (4 x Type-A)
	2 x DisplayPort
	1 x HDMI™ port
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	2 x 4-pin Chassis Fan headers
	Power Related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V CPU Power connector
	Storage Related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 5Gbps connector (supports USB Type-C® )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1 pin)
	1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III
	– DIGI+ VRM
	– LANGuard
	– Overvoltage protection
	– SafeSlot Core+
	– Stainless-steel back I/O
	ASUS Q-Design
	– Q-Dashboard
	– Q-DIMM
	– Q-LED Core
	– Q-Slot
	ASUS Thermal Solution
	– M.2 heatsink
	– VRM heatsink design
	ASUS EZ DIY
	– BIOS FlashBack™ button
	– BIOS FlashBack™ LED
	– Pre-mounted I/O shield
	Aura Sync
	– Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	– Aura Creator
	– Aura Sync
	– Fan Xpert 2+
	– Power Saving
	ASUS DriverHub
	TurboV Core
	ASUS CPU-Z
	Norton 360 Deluxe (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash 3
	– ASUS UEFI BIOS EZ Mode
	– ASUS MyHotkey
	Remote Management Features
	IT Management software supported
	– ASUS Control Center Express (ACCE)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x M.2 rubber package
	2 x Screw packages for M.2 SSD
	Documentation
	1 x ACC Express Activation Key Card
	1 x Quick start guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor
	9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
