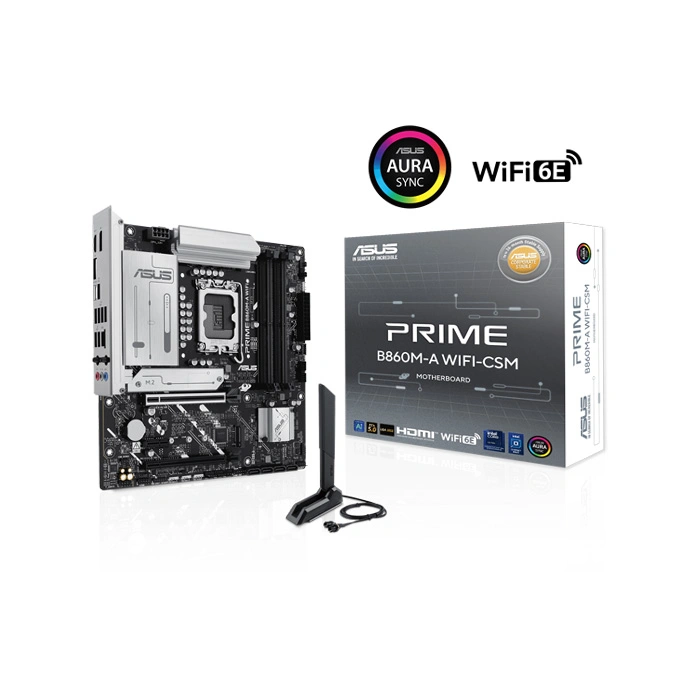

[B860M-A WIFI-CSM] MAINBOARD ASUS PRIME (90MB1JY0) เมนบอร์ด

Name: [B860M-A WIFI-CSM] MAINBOARD ASUS PRIME (90MB1JY0) เมนบอร์ด
SKU: 0330-001-0611
Availability: InStock

6,700 ฿ Excl. VAT 7%

เมนบอร์ดตระกูล ASUS PRIME ถูกออกแบบอย่างพิถีพิถันเพื่อปลดล็อกศักยภาพสูงสุดของ Intel® Core™ Ultra Processors (Series 2) รุ่นล่าสุด ด้วยการออกแบบภาคจ่ายไฟที่แข็งแกร่ง ระบบระบายความร้อนที่ครบถ้วน และตัวเลือกการปรับแต่งอัจฉริยะ เมนบอร์ด PRIME B860M-A WIFI-CSM จึงมอบตัวเลือกในการปรับแต่งประสิทธิภาพที่หลากหลายให้กับผู้ใช้งานและนักประกอบคอมพิวเตอร์ DIY ผ่านซอฟต์แวร์และเฟิร์มแวร์ที่ใช้งานง่าย

นอกจากนี้ ยังออกแบบมาให้ พร้อมรองรับการใช้งาน AI ขั้นสูง ด้วยพลังประมวลผลและการเชื่อมต่อที่จำเป็นต่อการใช้งาน AI ที่มีความต้องการสูง

ประกัน 3 ปี

2 in stock

ส่งด่วน Sameday
ภายใน 24 ชั่วโมง

ส่งฟรีกรุงเทพและ
ปริมณฑล

SKU: 0330-001-0611 Categories: 3y, ASUS, ASUS MAINBOARD, MAINBOARD Tag: WTG

Description


Model	PRIME B860M-A WIFI-CSM
CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
	Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
	*Refer to https://www.asus.com/support/download-center/ for CPU support list.
	**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B860 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5
	Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
	Dual channel memory architecture
	DIMM Fit
	Supports Intel® Extreme Memory Profile (XMP) memory module
	ASUS Enhanced Memory Profile III(AEMPIII)
	*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
	* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	2 x DisplayPort**
	1 x HDMI™ port***
	1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMI 2.1.
	**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.
	***** VGA resolution support depends on processors’ or graphic cards’ resolution.
	******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel® Core™ Ultra Processors(series 2)*
	1 x PCIe 5.0 x16 slot
	Intel® B860 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 4.0 x1 slot
	– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel® Core™ Ultra Processors (Series 2) *
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	Intel®B860 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
	4 x SATA 6Gb/s ports
	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E
	2×2 Wi-Fi 6E (802.11ax)
	Supports 2.4/5/6GHz frequency band*
	Bluetooth® v5.3**
	* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
	** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB	Rear USB (Total 8 ports)
	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
	1 x USB 10Gbps port (1 x Type-A )
	2 x USB 5Gbps ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)**
	Front USB (Total 5 ports)
	1 x USB 10Gbps connector (supports USB Type-C® )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional USB 2.0 ports
	*USB Type-C® power delivery output: max. 5V/3A
	**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– Supports up to 24-Bit/192 kHz playback
	Audio Features
	– Audio Shielding
	– Premium audio capacitors
	– Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
	1 x USB 10Gbps port (1 x Type-A)
	2 x USB 5Gbps ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A )
	2 x DisplayPort
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power Related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V CPU Power connector
	Storage Related
	2 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 10Gbps connector (supports USB Type-C® )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Aura RGB header
	1 x Clear CMOS header
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1 pin)
	1 x 10-1 pin Front System Panel header
	1 x Thunderbolt™ (USB4®) header
Special Features	ASUS 5X PROTECTION III
	– DIGI+ VRM (- Digital power design with DrMOS)
	– ESD Guards
	– LANGuard
	– Overvoltage protection
	– SafeSlot
	– Stainless-steel back I/O
	ASUS Q-Design
	– Q-Antenna
	– Q-Dashboard
	– Q-DIMM
	– Q-LED Core
	– Q-Slot
	ASUS Thermal Solution
	– M.2 heatsink
	– VRM heatsink design
	ASUS EZ DIY
	– ProCool
	– Pre-mounted I/O shield
	Aura Sync
	– Aura RGB header
	– Addressable Gen2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	– Aura Creator
	– Aura Sync
	– Fan Xpert 2+
	– Power Saving
	ASUS DriverHub
	ASUS GlideX
	ASUS CPU-Z
	Norton 360 for Deluxe (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash
	– ASUS UEFI BIOS EZ Mode
	– ASUS MyHotkey
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	1 x M.2 rubber package
	1 x Screw package for M.2 SSD
	Documentation
	1 x ACC Express Activation Key Card
	1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor	micro-ATX Form Factor
	9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
