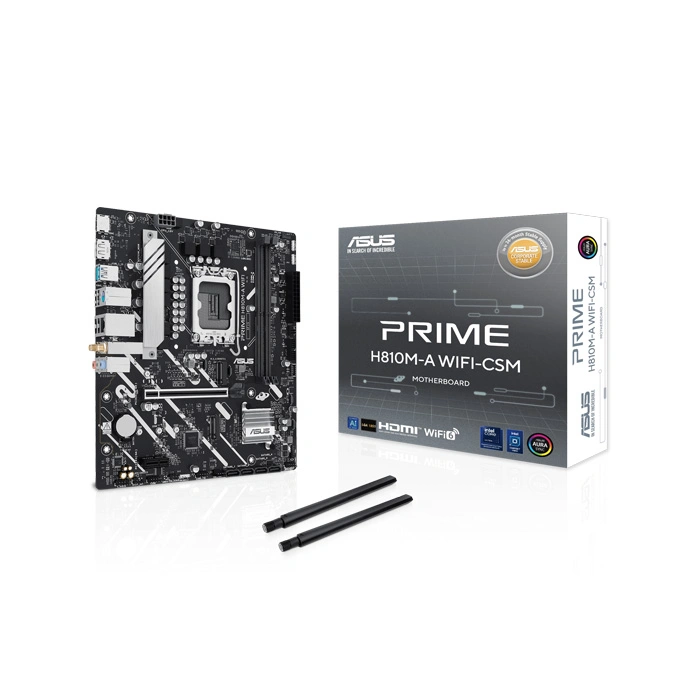

[H810M-A WIFI-CSM] MAINBOARD ASUS PRIME (90MB1KJ0-M0UAYC) เมนบอร์ด

Name: [H810M-A WIFI-CSM] MAINBOARD ASUS PRIME (90MB1KJ0-M0UAYC) เมนบอร์ด
SKU: 0330-001-0802
Availability: InStock

4,800 ฿ Excl. VAT 7%

เมนบอร์ดซีรีส์ ASUS PRIME ถูกออกแบบมาอย่างเชี่ยวชาญเพื่อปลดปล่อยศักยภาพสูงสุดของ Intel® Core™ Ultra Processors (Series 2) รุ่นล่าสุด ด้วยภาคจ่ายไฟที่แข็งแกร่ง ระบบระบายความร้อนที่ครบถ้วน และตัวเลือกการปรับแต่งที่ชาญฉลาด เมนบอร์ด PRIME H810M-A WIFI-CSM มอบทางเลือกในการเพิ่มประสิทธิภาพให้กับผู้ใช้งานและนักประกอบคอมพิวเตอร์ DIY ผ่านซอฟต์แวร์และเฟิร์มแวร์ที่ใช้งานง่าย

ออกแบบมาเพื่อ รองรับพีซียุค AI ขั้นสูง ด้วยพลังประมวลผลและการเชื่อมต่อที่จำเป็นสำหรับแอปพลิเคชัน AI ที่มีความต้องการสูง

ประกัน 3 ปี

17 in stock

ส่งด่วน Sameday
ภายใน 24 ชั่วโมง

ส่งฟรีกรุงเทพและ
ปริมณฑล

SKU: 0330-001-0802 Categories: 3y, ASUS, ASUS MAINBOARD, MAINBOARD Tag: WTG

Description


Model	PRIME H810M-A WIFI-CSM
CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
	Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
	* Refer to https://www.asus.com/support/download-center/ for CPU support list.
	** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® H810 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5
	Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
	Dual channel memory architecture
	DIMM Fit
	Supports Intel® Extreme Memory Profile (XMP) memory module
	ASUS Enhanced Memory Profile II (AEMP II)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
	** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort**
	1 x HDMI™ port***
	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMI 2.1.
	**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots	Intel® Core™ Ultra Processors (Series 2)
	1 x PCIe 4.0 x16 slot
	Intel® H810 Chipset
	1 x PCIe 4.0 x1 slot
	– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
	Intel® H810 Chipset
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
	4 x SATA 6Gb/s ports
Ethernet	1 x Intel® 1Gb Ethernet port*
	ASUS LANGuard
	*With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wireless & Bluetooth	Wi-Fi 6
	1×1 Wi-Fi 6 (802.11ax)
	Supports 2.4/5GHz frequency band
	Bluetooth® v5.3*
	* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB	Rear USB (Total 6 ports)
	2 x USB 10Gbps ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	Front USB (Total 5 ports)
	1 x USB 5Gbps connector (supports USB Type-C®)*
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional USB 2.0 ports
	* USB Type-C® power delivery output: max. 5V/3A
	** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– Supports up to 24-Bit/192 kHz playback
	Audio Features
	– Audio Shielding
	– Premium audio capacitors
	– Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Intel® 1Gb Ethernet port
	3 x Audio jacks
	1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	2 x 4-pin Chassis Fan headers
	Power Related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V CPU Power connector
	Storage Related
	2 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 5Gbps connector (supports USB Type-C® )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen2 headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1 pin)
	1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III
	– DIGI+ VRM
	– LANGuard
	– Overvoltage protection
	– SafeSlot Core+
	– Stainless-steel back I/O
	ASUS Q-Design
	– Q-DIMM
	– Q-Dashboard
	– Q-LED Core
	– Q-Slot
	ASUS Thermal Solution
	– VRM heatsink design
	Aura Sync
	– Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	– Aura Creator
	– Aura Sync
	– Fan Xpert 2+
	– Power Saving
	ASUS DriverHub
	ASUS GlideX
	Norton 360 Deluxe (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash
	– ASUS UEFI BIOS EZ Mode
	– ASUS MyHotkey
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS Wi-Fi moving antenna
	1 x I/O shield
	1 x Screw package for M.2 SSD
	Documentation
	1 x ACC Express activation key card
	1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor	micro-ATX Form Factor
	9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

[H810M-A WIFI-CSM] MAINBOARD ASUS PRIME (90MB1KJ0-M0UAYC) เมนบอร์ด
