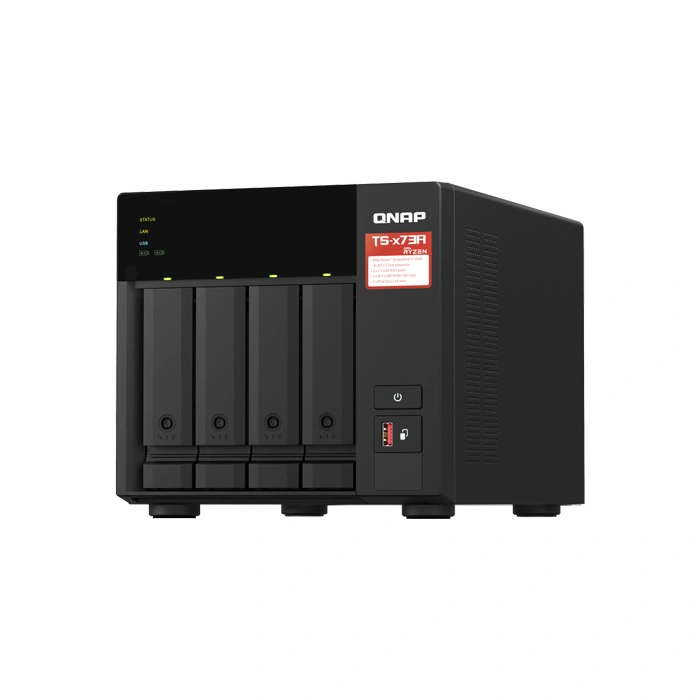

[TS-473A-8G] NAS QNAP 4-bay NAS, AMD Ryzen V1000 series V1500B 4C/8T 2.2GHz, 8GB D
29,000 ฿ Excl. VAT 7%
2 in stock
| TS-473A-8G | |
| Download Datasheet | https://www.qnap.com/th-th/product/ts-473a/specs/hardware/TS-473A-8G.pdf |
| CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Support ECC memory | |
| For dual-DIMM configurations, you must use a pair of identical DDR4 modules. | |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives |
| 2.5-inch SATA solid state drives | |
| Hot-swappable |
Yes (The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slots |
| The M.2 SSD is not included as standard. | |
| M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. | |
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2(2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| PCIe Slot | 2 |
| Slot 1: PCIe Gen 3 x4 | |
| Slot 2: PCIe Gen 3 x4 | |
| Card dimensions for PCIe slot 1~Slot 2：200 x 68.9 x 18.76 mm / 7.87 x 2.71 x 0.74 inches. | |
| Wider cards can be installed if the next PCIe slot will not be used. | |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| 1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps | |
| HDMI™ Output | Optional via a PCIe adapter |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 180.2 × 199.3 × 279.6 mm |
| Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) | |
| Weight (Net) | 5.54 kg |
| Weight (Gross) | 6.15 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
| Power Consumption: Disk Standby Mode | 19.576 |
| Power Consumption: Operating Mode, Typical | 29.792 W |
| Tested with drives fully populated. | |
| Fan | System fan: 1 x 120mm |
| CPU fan: 1 x 60mm | |
| System Warning | Buzzer |
| Warranty | 3 Years |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2000 |
