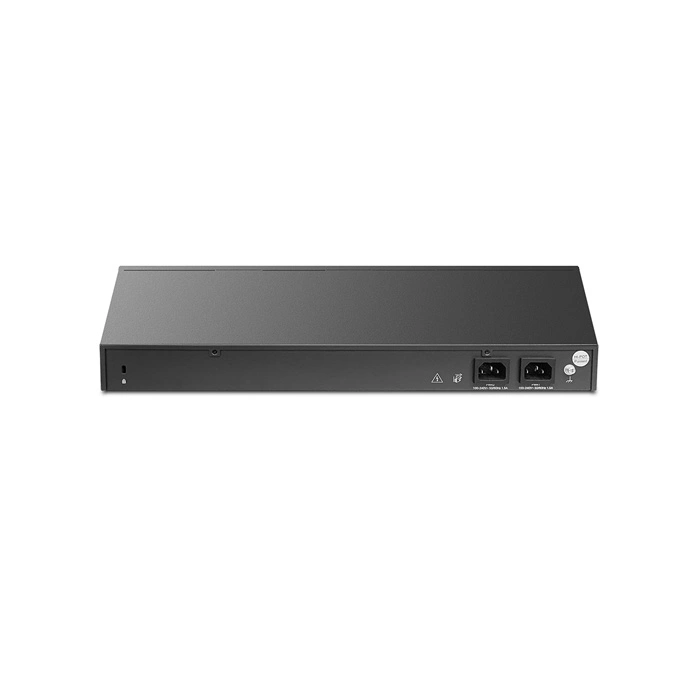

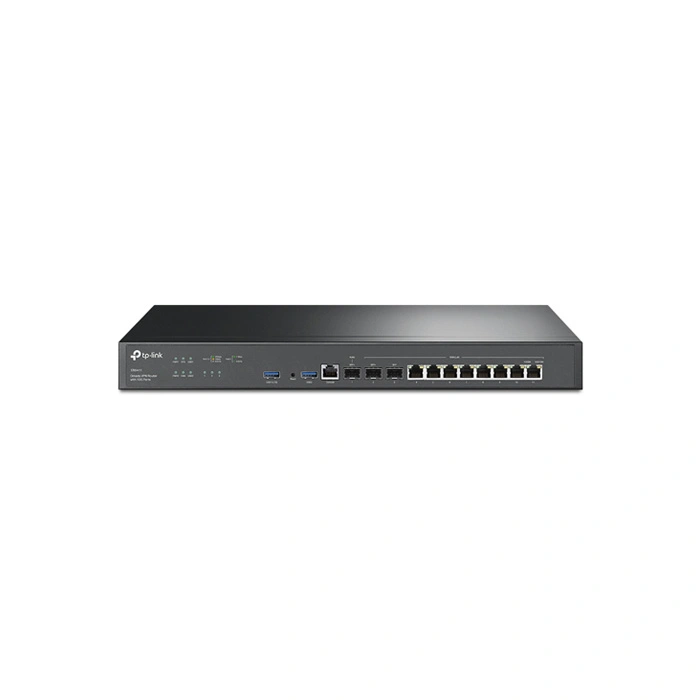

[ER8411] Tp-Link Omada VPN Router with 10G Ports
14,000 ฿ Excl. VAT 7%
out of stock
ส่งฟรีกรุงเทพและ
ปริมณฑล
ส่งด่วน Sameday
ภายใน 24 ชั่วโมง
ขอใบเสนอราคา
ราคาถูกที่สุด
| HARDWARE FEATURES | |
| Interface | • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) |
| • 1× 1GE SFP WAN/LAN Ports | |
| • 8× 1GE RJ45 WAN/LAN Ports | |
| • 1× RJ45 Console Ports | |
| • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) | |
| Button | Reset Button |
| Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Max Power Consumption | • 26.36 W (with USB 3.0 connected) |
| • 19.12 W (without USB 3.0 connected) | |
| PERFORMANCE | |
| Concurrent Session | 2,300,000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | • Upload: 9445.82 Mbps |
| • Download: 9449.26 Mbps | |
| NAT(DHCP) | • Upload: 9426.83 Mbps |
| • Download: 9426.20 Mbps | |
| NAT(PPPoE) | • Upload: 9413.96 Mbps |
| • Download: 9102.01 Mbps | |
| NAT (L2TP) | • Upload: 4230.62 Mbps |
| • Download: 4169.53 Mbps | |
| NAT (PPTP) | • Upload: 3933.86 Mbps |
| • Download: 3821.97 Mbps | |
| 64 Byte Packet Forwarding Rate | • Upload: 1080 Mbps |
| • Download: 1030 Mbps | |
| IPsec VPN Throughput | • SHA1-AES256: 2140.45 Mbps |
| • SHA2-AES256: 2080.20 Mbps | |
| OpenVPN | 1665.64 Mbps |
| L2TP VPN Throughput | • Unencrypted: 5013.50 Mbps |
| • Encrypted: 2274.74 Mbps | |
| SSL VPN Throughput | 1511.10 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static/Dynamic IP |
| • PPPoE | |
| • PPTP | |
| • L2TP | |
| • 6to4 Tunnel | |
| • Pass-Through | |
| • Mobile Broadband: 4G/3G modem for backup via USB port | |
| MAC Clone | Modify WAN/LAN MAC Address*4 |
| DHCP | • DHCP Server/Client |
| • DHCP Address Reservation | |
| • Multi-net DHCP | |
| • Multi-IP Interfaces | |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing |
| • Policy Routing | |
| Bandwidth Control | • IP/Port-based Bandwidth Control |
| • Guarantee & Limited Bandwidth | |
| Load Balance | • Intelligent Load Balance |
| • Application Optimized Routing | |
| • Link Backup (Timing*5, Failover) | |
| • Online Detection | |
| NAT | • One-to-One NAT*5 |
| • Multi-Net NAT | |
| • Virtual Server | |
| • Port Triggering*5 | |
| • NAT-DMZ | |
| • FTP/H.323/SIP/IPSec/PPTP ALG | |
| • UPnP | |
| Security | • SPI Firewall |
| • VPN Passthrough | |
| • FTP/H.323/PPTP/SIP/IPsec ALG | |
| • DoS Defence, Ping of Death | |
| • Local Management | |
| Session Limit | IP-based Session Limit |
| VPN | |
| SSL VPN | • SSL VPN Server |
| • SSL VPN Client | |
| • 500 SSL VPN Tunnels | |
| IPsec VPN | • 300 IPSec VPN Tunnels |
| • LAN-to-LAN, Client-to-LAN | |
| • Main, Aggressive Negotiation Mode | |
| • DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm | |
| • IKE v1/v2 | |
| • MD5, SHA1 Authentication Algorithm | |
| • NAT Traversal (NAT-T) | |
| • Dead Peer Detection (DPD) | |
| • Perfect Forward Secrecy (PFS) | |
| PPTP VPN | • PPTP VPN Server |
| • PPTP VPN Client (32)*6 | |
| • 300 Tunnels (Shared with L2TP) | |
| • PPTP with MPPE Encryption | |
| L2TP VPN | • L2TP VPN Server |
| • L2TP VPN Client (32)*6 | |
| • 300 Tunnels (Shared with PPTP) | |
| • L2TP over IPSec | |
| OpenVPN | • OpenVPN Server |
| • OpenVPN Client (10)*6 | |
| • 110 OpenVPN Tunnels | |
| SECURITY | |
| Filtering | • WEB Group Filtering*5 |
| • URL Filtering | |
| • Web Security*5 | |
| ARP Inspection | • Sending GARP Packets*5 |
| • ARP Scanning*5 | |
| • IP-MAC Binding*5 | |
| Attack Defense | • TCP/UDP/ICMP Flood Defense |
| • Block TCP Scan (Stealth FIN/Xmas/Null) | |
| • Block Ping from WAN | |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | • No Authentication |
| • Simple Password*2 | |
| • Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2） | |
| • External Radius Sever | |
| • External Portal Sever*2 | |
| • Facebook Check-In*2 | |
| • Instagram Follow*2 | |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| • Omada Cloud-Based Controller | |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface |
| • Remote Management | |
| • Export & Import Configuration | |
| • SNMP v1/v2c/v3 | |
| • Diagnostics (Ping & Traceroute)*5 | |
| • NTP Synchronize*5 | |
| • Syslog Support | |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery |
| • Intelligent Network Monitoring | |
| • Abnormal Event Warnings | |
| • Unified Configuration | |
| • Reboot Schedule | |
| • Captive Portal Configuration | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • Omada 10G Multi-WAN Security Gateway ER8411 |
| • Power Cord | |
| • Rack-Mount Kit | |
| • Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing |
